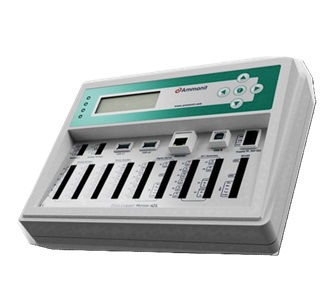

Data Logger Ammonit Meteo-42

SARTELCO SISTEMI
SARTELCO SISTEMI

Meteo-42 is easy to configure – from your office or directly on site – using the same communication tools and software as the Meteo-40 plus: AmmonitConnect and AmmonitOR cloud. Our data loggers are easy to install and work reliably worldwide.
Meteo-42 brings those technical innovations:
•    Three RS-485 ports
•    Faster processors
•    Better grounding for more accurate measurement of analog quantities
•    More flexible switches.

Meteo-42A

 Description  / Device



Order Number

M40150



Input Channels

Pulse Counters

2

Anemometers, precipitation sensors

Digital Serial  (Status)

 4

Wind vanes serial, precipitation monitors, ext. activation

Analog Voltage

14
± 0.1 V,
± 1 V,
± 10 V,
16 bit

Air pressure, temperature, humidity sensors, pot. wind vanes, pyranometers, pyrheliometers

RS485 (Client)

2
RS485
Client
Interfaces

Ultrasonic anemometers and smart sensors

Output Channels

RS485 (S)

(1) RS485 Server

SCADA monitoring software

 5V | Switches

4

Sensor supply, relay for modem, heating supply

Current Source

1

 Pt1000, Pt100

Reference Voltage Source

1

5 Volt reference source

Connectivity

 USB

(2) USB-A host (USB 2.0 High Speed)
(1) USB-B device (USB 2.0 High
Speed)

PC, modem, memory stick, WiFi, GPS, camera

Ethernet

 (1) Ethernet

Router, satellite modem, LAN and SCADA output

Data transfer

Email, FTP, SCP, SFTP, FTPS, data
copy on USB flash drive, SCADA, API

From Meteo-42 data logger and from AmmonitOR Data Cloud

Data cloud

AmmonitOR Data Cloud

https://or.ammonit.com
Data Cloud for campaign monitoring

Remote access
to Data Logger

Ammonit Connect Remote Access
to Data logger

https://<serialnumber>.connect.ammonit.com/
Remote web UI access to data logger for configuration

Live data

XMPP messages

Ammonit Live Data Suite with PubSub server, server side data
collection, and web app for immediate transmission and display
of measurement data

Storage Size

Source Data
(1-sec data)

 2 GB

enough for 6-12 months

 CSV Data
(10-min data)

 0,5 GB

enough for ≤ 15 years

Display & Keys

(20 x 4) LC display with backlight, five keys

Power Supply

9 ... 36 V DC

Operat. temperature

 -40 ... +65 °C

Protection (Housing)

IP65

Housing Dimensions

260 x 194 x 67 mm

Weight

1110 g

Accessories

External modules, plug connector, mounting kit, steel cabinet
